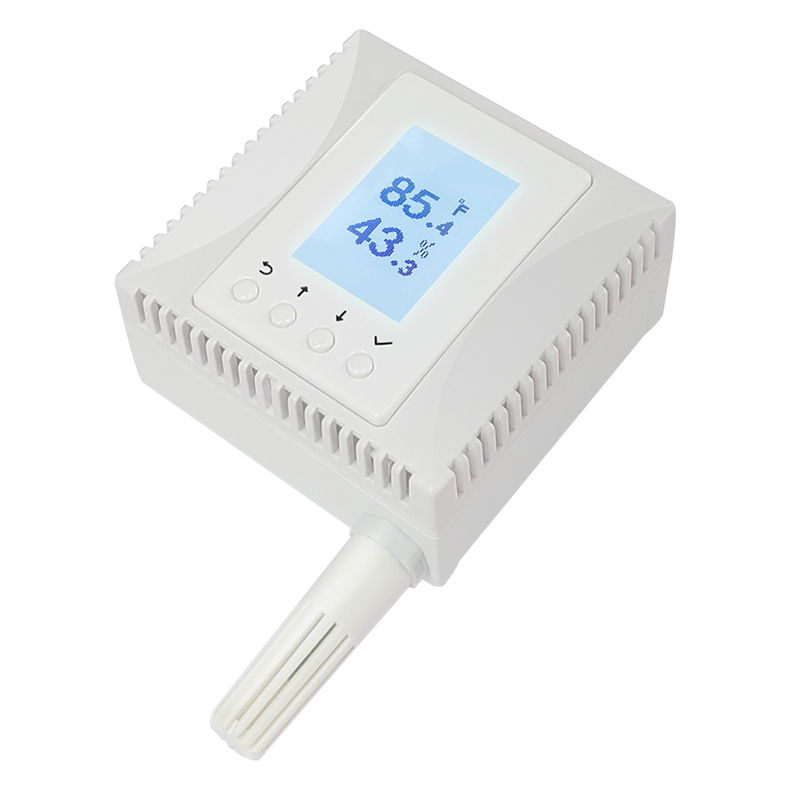

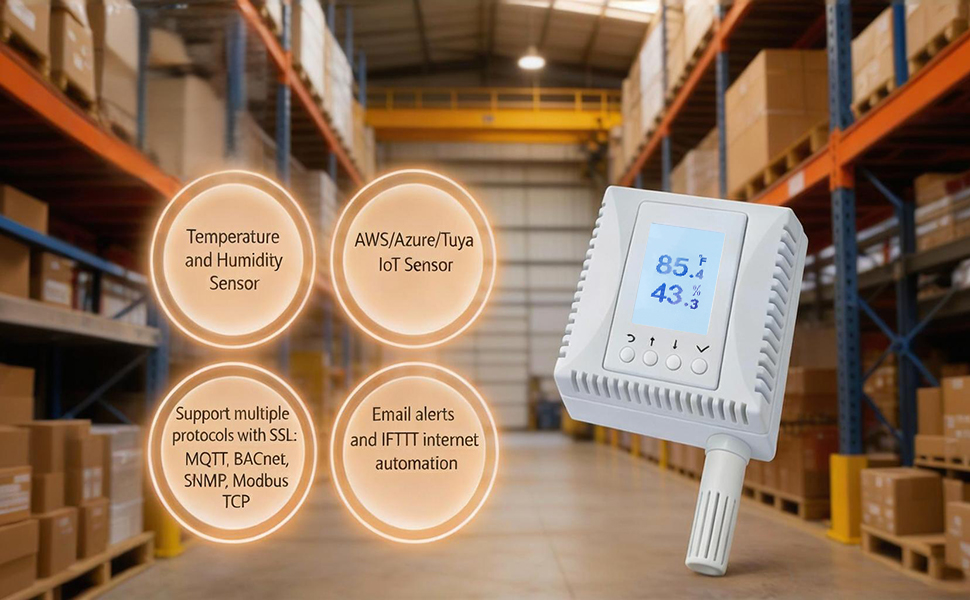

MN-NTHM Network temperature and humidity monitor

Product Introduction

The MN-NTHM network temperature and humidity monitor is an environmental monitoring module independently developed by our company, which can measure and display environmental temperature and relative humidity. MN-NTHM provides device POE power supply and TCP/IP network data transmission through RJ45 Ethernet interface for temperature and humidity monitoring data collection and configuration, suitable for various environmental monitoring scenarios.

Functional characteristics

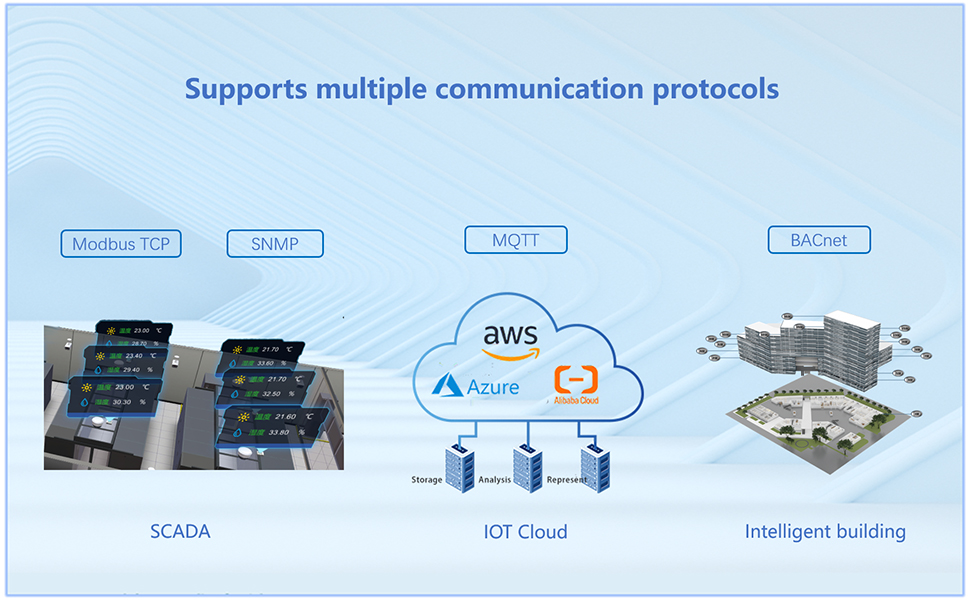

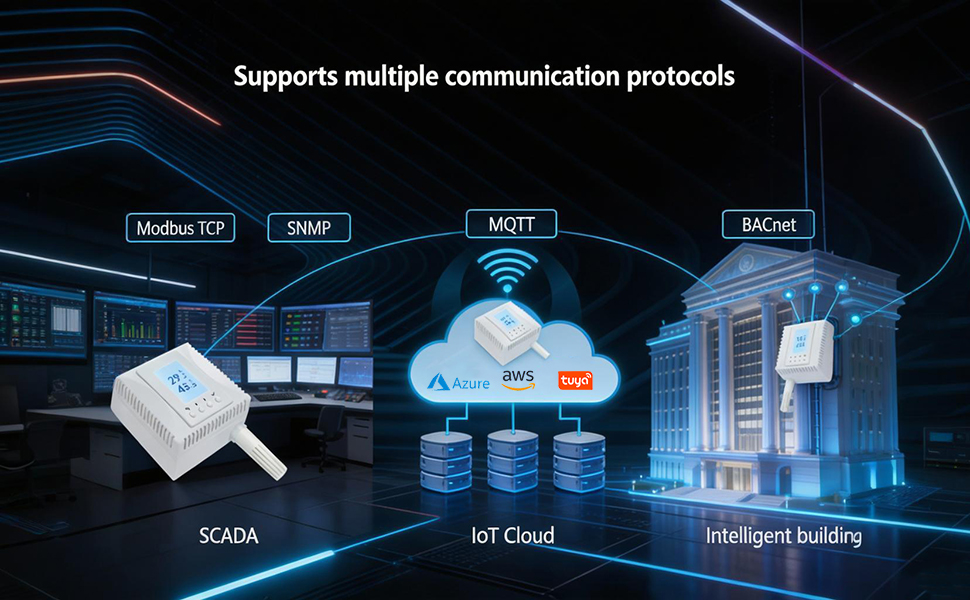

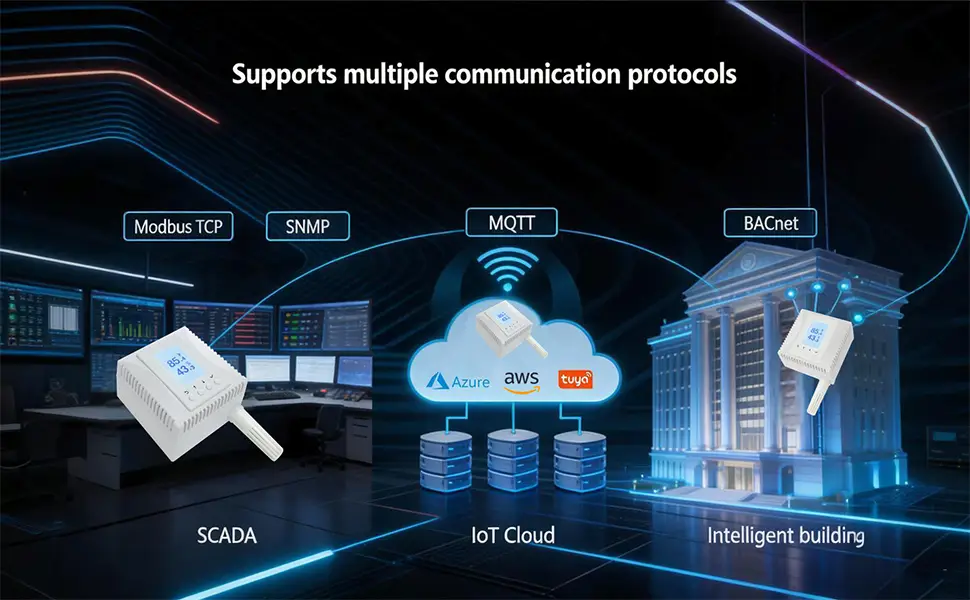

Supports multiple communication protocols

Supports multiple communication protocols: The device supports various communication protocols such as Modbus TCP, SNMP, BACnet, MQTT, and supports multi scenario applications. We support the above protocols and can provide data in multiple ways simultaneously.

AWS and Azure IoT Sensor: Can be integrated to AWS/Azure IoT system directly with low cost.

POE power supply

Pain points of traditional 485 bus data acquisition system:

1、The wiring is difficult to standardize, and there are easy connection problems between the wiring stage and the equipment installation stage, which requires high requirements for construction personnel.2、High post operation and maintenance costs: A device failure can affect the entire bus, increasing the cost of fault location and post maintenance.3、Distributed power supply, inconvenient for uninterrupted power supply.

The product supports POE power supply, solving the above pain points：

1、Standard wiring scheme: A single network cable can meet the needs of power supply and communication, and a standardized integrated wiring scheme can be adopted to reduce the requirements for construction personnel and minimize the connection problems during the wiring and installation stages.2、Isolation fault: Star structure fault isolation reduces the workload and cost of later maintenance.3、Centralized power supply: Simply provide uninterrupted power supply at the POE switch to ensure power supply to the collection system.

High precision

Adopting digital temperature and humidity sensors, with high measurement accuracy.Temperature measurement accuracy: ± 0.3 ° C; Humidity measurement accuracy: ± 3%.

Easy to use

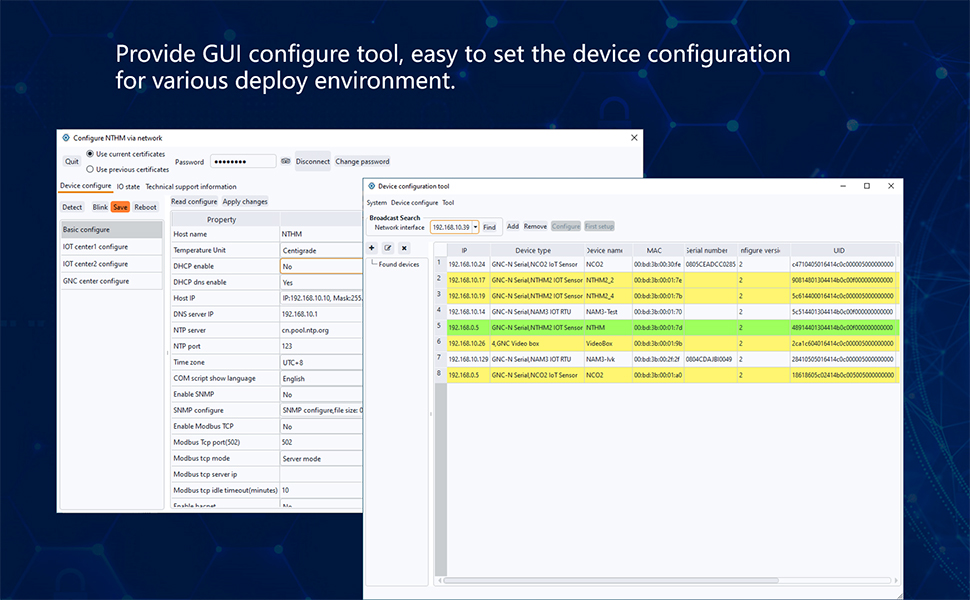

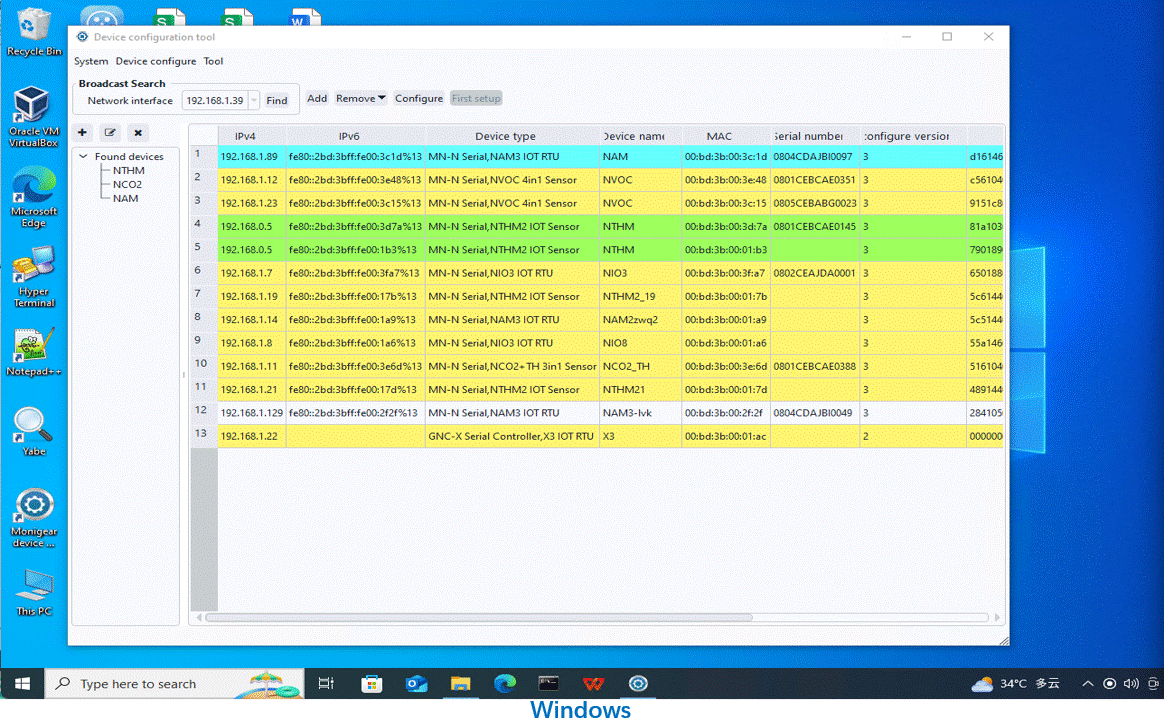

A graphical interface configuration tool that supports online remote upgrades and facilitates product deployment and maintenance.

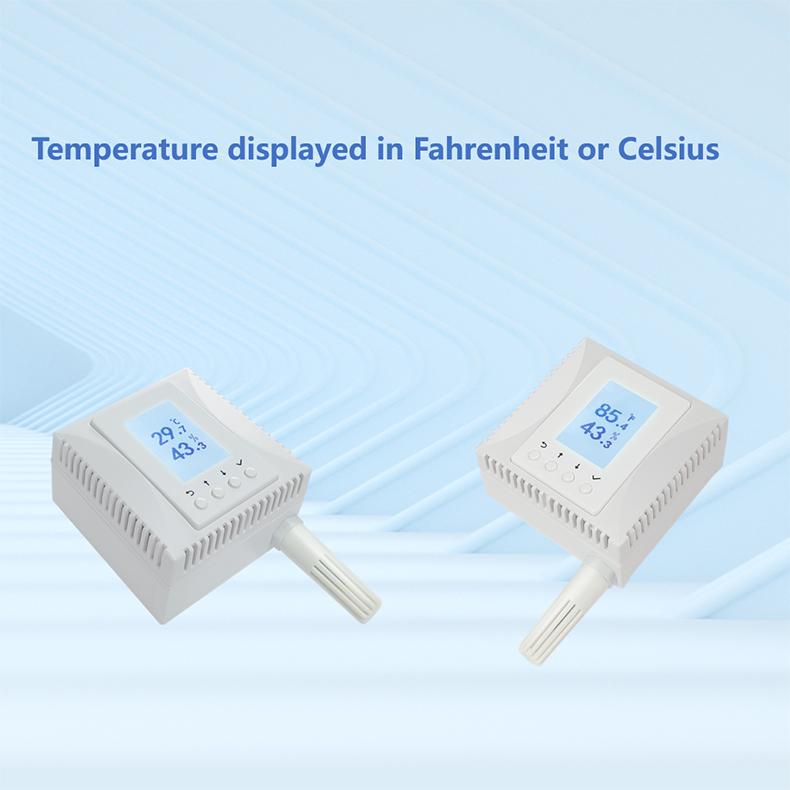

Temperature displayed in F or C

Temperature displayed in Fahrenheit or Celsius.

Beautiful and durable

Compatible with the standard 86*86 bottom box in size, easy to install, and aesthetically pleasing in appearance.The shell is made of durable and flame-retardant PC material, which meets high fire protection requirements.

Application scope

Widely used in various industries such as government, communication, electricity, banking, transportation, food, medicine, chemical industry, and environmental protection.

Technical parameter

Measurement Range	Temperature: -30°C~85°C (-22°F~185°F); Humidity: 0-100% RH
Measurement Accuracy	Temperature: ±0.3°C @0-65°C (±32.54°F @32-149°F); Humidity: ±3%@10-90% RH
Communication Protocol	Supports multiple TCP/IP application layer protocols: MQTT/MQTTS, ModbusTCP, etc.
Power Supply	POE Power: Compatible with IEEE 802.3at standard. Auxiliary Power: DC12V/DC24V.
Power Consumption	0.3W
Operating Storage Temperature	-30~+85℃ (-22°F~185°F)
Operating Storage Humidity	5~95% RH, non-condensing
Product Dimensions	86*86*48 mm
